RC CAR BMT 702 1/10 TOURING KIT

BMT 702 1/10 TOURING KIT

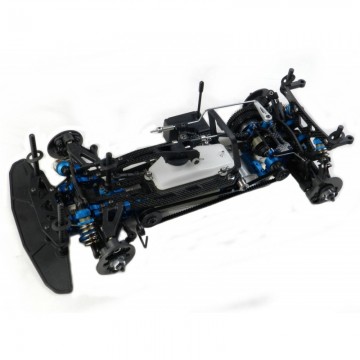

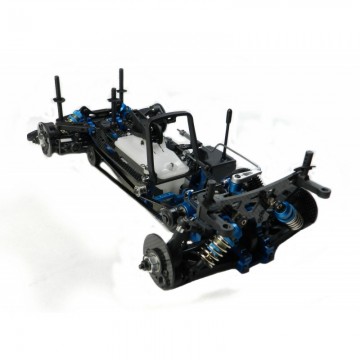

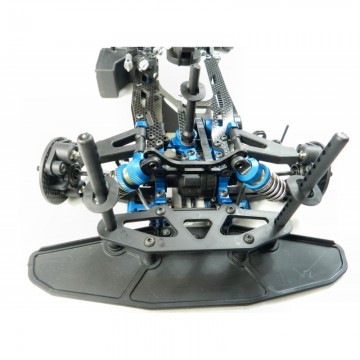

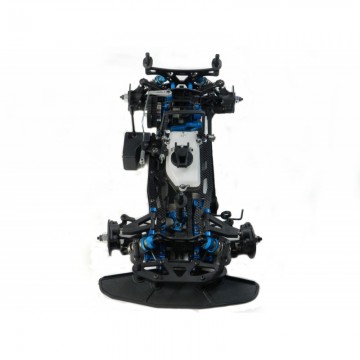

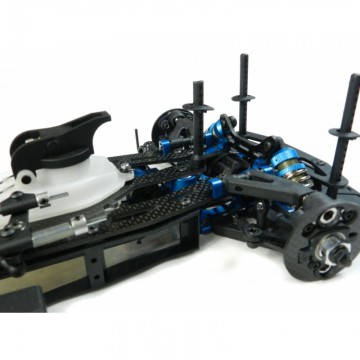

This is a new car BMT 702 for 1/10 On/Road competition.

The BMT 702 is supplied in kit form , disassembled.

Car is complete new, new suspension geometry, new bulckhead, chassis, and update plastic part.

To complete the kit requires a 2-channel radio control , a .12 engine . and accessories for the ignition.

Lower center gravity BMT 702:

Great attention was given to the ultra-low center of gravity, one of the lowest in the category thanks to the shape of the tank and the arrangement of the servants who are both lying down, which was specifically developed for this unique support that incorporates all the electronics that with only 3 screws comes off from the model facilitating maintenance operations.

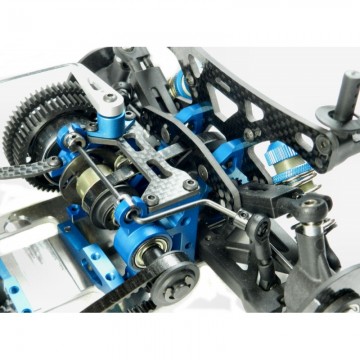

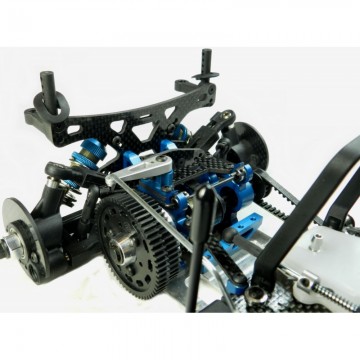

Transmission BMT 702:

Lightweight, everything has been reduced where possible, the transmission is very light and smooth, and the 2speed system is also small and lightweight, all this translates into greater engine efficiency, improved braking and lower fuel consumption.

Both the front and rear differentials are present with steel gears for greater efficacy to and reliability.

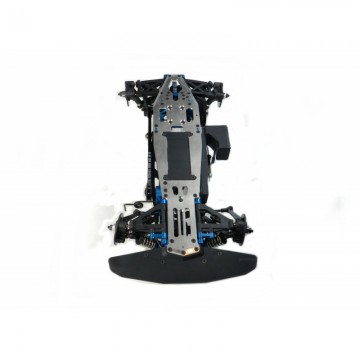

Chassis BMT 702:

Great care has been given to the construction of the frame, which was made asymmetrical to ensure equal torque to the left and right side, made of 7075-T6, with rounded edges to improve the passage over the curbs

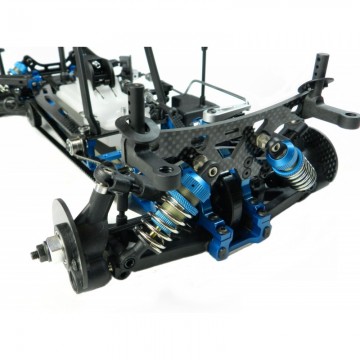

Suspension BMT 702:

The suspensions have the ability to adjust the camber, toe in, the wheelbase, in a very rapid means of ball joints present, while for the anti-roll bars is chosen to focus on that wire, however, giving the possibility to mount to ' front classical knives.

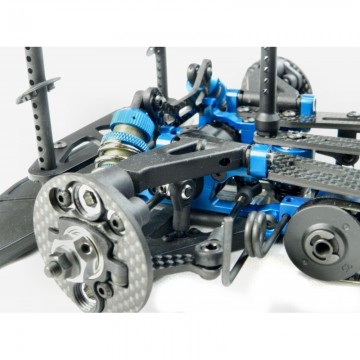

The front hub is designed to quickly adjust the angle of the kingpin and the caster recuper so finding the right setup, and have in standard dotation, the Air Disc to improve aerodynamics.

The plastics are already in Hard version, in a special plastic compound that ensures maximum performances and robustness.

All plastics suspension can be mounted both left and right, with a nice savings on spare parts to buy.

Radio Plate BMT 702:

The radio plate is manufactured from carbon 2mm, the fuel tank is fixed to them by means of metal columns in Rapid disassembly thanks to the clips.

The servo support is in one piece, with servo in laydonw position, and receiver box can be removed to save weight.

On the radio plate have the bushings for flex system.

Servo Saver BMT 702:

The servo saver is realized in Ergal, is adjustable by a single screw.

Full Optional BMT 702:

The brake lever, radio plate support, front bar supports are all in ergal 7075, which makes the car really Full Optional!

Clutch BMT 702:

The clutch is of the type in Centax reverse version that make the operation of the engine better.

Technical data BMT 702:

Category: 1/10 On-road

Transmission: 4wd belts

Gearbox: 2 speed

Clutch: Adjustable centax reverse

Front Hub full adjustable

Adjustable anti-roll bars

Fully adjustable suspension

Disc brake ventilated

Low center of gravity

Radio plate and damper plate in carbon

Alu chassis 3mm

75ml tank with filter

Transmission on ball bearing
