HUDY Chassis Droop Gauge Support Blocks 30Mm For 1/8 Off-Road - L - H107704
€ 37,95
(inclusief btw 21%)
✘ Niet op voorraad
- Levertijd 6-8 dagen
Specificaties
Productcode
H107704
EAN code
H107704
Productcode leverancier
H107704
Bruto gewicht
0,30 Kg
Omschrijving

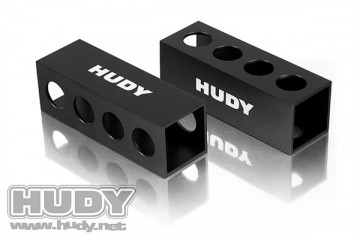

HUDY Chassis Droop Gauge Support Blocks 30Mm For 1/8 Off-Road
| Lightweight chassis droop gauge support blocks are a “must have” set-up tool for every off-road or truggy racer. The aluminum frame is CNC machined and drilled for super lightweight design and exact the size guarantees accurate & precise downstop measurements. Proper chassis droop is a critical yet frequently overlooked set-up feature of modern 1/8 off-road cars and truggies. It is essential for proper handling to achieve balanced down-travel on each side of the suspension and as such HUDY is the first RC company to develop and produce the first purposefully-designed 1/8 off-road large-size droop gauge support blocks. |
(click to enlarge) |
|
| Using the support blocks is simplicity itself. Remove the tires from the buggy and using flat HUDY Set-up Board #108202 place the chassis on the support blocks; place the front support block below the servo saver, and place the rear support block below the rear suspension mounting. Using the #107717 Chassis Ride Height & Droop Gauge 0 to -13 mm for 1/8 Off-Road with elevated scales, measure the droop under the wheel axle hex. Use the downstop screws to alter the suspension droop on each side of the car; the shocks should extend out far enough that they do not limit the suspension arm movement. Ensuring equal and proper suspension droop will allow the car to achieve a proper traction level and weight transfer depending on track conditions. Please refer to your buggy’s (or truggy’s) set-up book to learn more about droop adjustment. |
