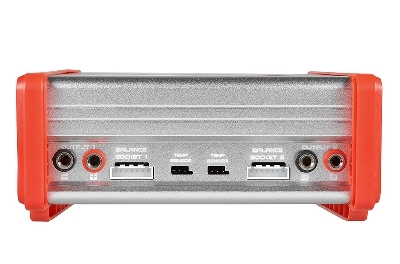

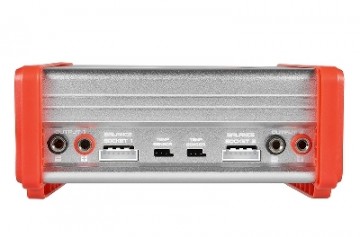

Balancer Output Connector (CH 1)
|
|
6S XH
|
|
| |
|
|
|
|
| |
| |
Balancer Output Connector (CH 2)
|
|
6S XH
|
|
| |
|
|
|
|
| |
| |
Battery Types
|
|
Li-Po • Li-Po HV • Li-Fe • Li-Ion • PB • Ni-Cd • Ni-MH
|
|
| |
|
|
|
|
|
|
| |
| |
Charge Current - A (CH 1)
|
|
0.1 - 10A
|
|
| |
|
|
|
|
| |
| |
Charge Current - A (CH 2)
|
|
0.1 - 5.0A
|
|
| |
|
|
|
|
| |
| |
Charge Outputs / Channels
|
|
2 Charge Outputs
|
|
| |
|
|
|
|
| |
| |
Charge Power Max. (CH 1)
|
|
100 Watt
|
|
| |
|
|
|
|
| |
| |
Charge Power Max. (CH 2)
|
|
50 Watt
|
|
| |
|
|
|
|
| |
| |
Charge Power Total WATT
|
|
100 Watt
|
|
| |
|
|
|
|
| |
| |
Dimensions (mm)
|
|
168x164x80mm
|
|
| |
|
|
|
|
| |
| |
Discharge Current - A (CH 1)
|
|
0.1 - 5.0A
|
|
| |
|
|
|
|
| |
| |
Discharge Current - A (CH 2)
|
|
0.1 - 2.0A
|
|
| |
|
|
|
|
| |
| |
Discharge Power Max. (CH 1)
|
|
10 Watt
|
|
| |
|
|
|
|
| |
| |
Discharge Power Max. (CH 2)
|
|
5 Watt
|
|
| |
|
|
|
|
|
|
| |
| |
Input Voltage AC
|
|
100 - 240V AC
|
|
| |
|
|
|
|
| |
| |
Input Voltage DC
|
|
11 - 18V DC
|
|
| |
|
|
|
|
| |
| |
LCD Screen Type
|
|
(2X) Backlit 2 Line - 16 Characters
|
|
| |
|
|
|
|
| |
| |
Li-xx Balancer Current - mAh (CH 1)
|
|
300mAh / Cell
|
|
| |
|
|
|
|
| |
| |
Li-xx Balancer Current - mAh (CH 2)
|
|
300mAh / Cell
|
|
| |
|
|
|
|
| |
| |
Nr of Li-xx Cells (CH 1)
|
|
1 - 6 Cells
|
|
| |
|
|
|
|
| |
| |
Nr of Li-xx Cells (CH 2)
|
|
1 - 6 Cells
|
|
| |
|
|
|
|
| |
| |
Nr of Ni-xx Cells (CH 1)
|
|
1 - 15 Cells
|
|
| |
|
|
|
|
| |
| |
Nr of Ni-xx Cells (CH 2)
|
|
1 - 15 Cells
|
|
| |
|
|
|
|
| |
| |
Nr of PB Cells (CH 1)
|
|
1 - 10 Cells
|
|
| |
|
|
|
|
| |
| |
Nr of PB Cells (CH 2)
|
|
1 - 10 Cells
|
|
| |
|
|
|
|
| |
| |
Power Supply Output
|
|
100 Watt / 17V DC
|
|
| |
|
|
|
|
| |
| |
Temperature Sensor Output (CH 1)
|
|
Yes
|
|
| |
|
|
|
|
| |
| |
Temperature Sensor Output (CH 2)
|
|
Yes
|
|
| |
|
|
|
|
| |
| |
USB / PC Connectivity (CH 1)
|
|
Yes
|
|
| |
|
|
|
|
| |
| |
USB / PC Connectivity (CH 2)
|
|
Yes
|
|
| |
|
|
|
|
|
|
|
|
