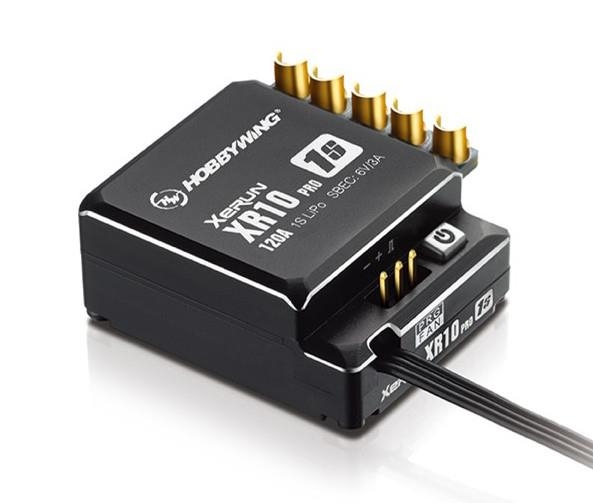

Hobbywing XeRun XR10 PRO 1S Sensored Brushless ESC (Black) 30112603
Small Size & Light Weight
Height of 15.9mm (6mm shorter than the previous V3.1 1S ESC) saves space and makes the
installation convenient; weight of 35.6g (12g lighter than the previous V3.1 1S ESC)
provides more weight margin when adjusting the balance of the chassis.
Small Size &
Light Weight
Super BEC
Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and
power various servos without connecting any extra receiver battery.
Super BEC
Super BEC
Built-in Electronic Switch & Capacitor Module
The built-in electronic switch with a lifespan of over 50000 on/off cycles
completely solves the problems like stuck reed, rusted contact points, and
automatic shutdown conventional mechanical switches often have.The internal
capacitor module saves space and makes the wiring simple and neat.
Built-in Electronic Switch &
Capacitor Module
Programming/Upgrading/Data
Reading Wirelessly
With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING WiFi Link
software installed), the user can remotely program parameters, upgrade firmware and
check relevant data of the ESC without leaving the control stand.
Programming / Upgrading /
Data reading wirelessly
Wifi Express module
Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate
throttle and brake control for all classes of competitions (esp. the Stock class).
Adjustable Throttle &
Brake PWM Frequencies
Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance
or connect the ESC to a LCD program box or WiFi module for ESC programming.
Separate Programming
/Fan Port
Separate Programming/Fan Port
Innovative Data-logging Function
This ESC features the data-logging function which can record the maximum ESC/motor
temperature, RPM and etc. in real time and allows users to check those
data via a LCD program box or WiFi module after each use.
Innovative Data-logging
Function
LCD Program Box
WiFi Module
