Xpert Servo Standard SM3301 6,0V Torque 14,30 Kg-cm, Speed 0,052 sec/60°
€ 119,50
(inclusief btw 21%)
✘ Niet op voorraad
Specificaties
Productcode
XPESM3301
EAN code
799666522260
Productcode leverancier
XPESM3301
Bruto gewicht
0,30 Kg
Omschrijving

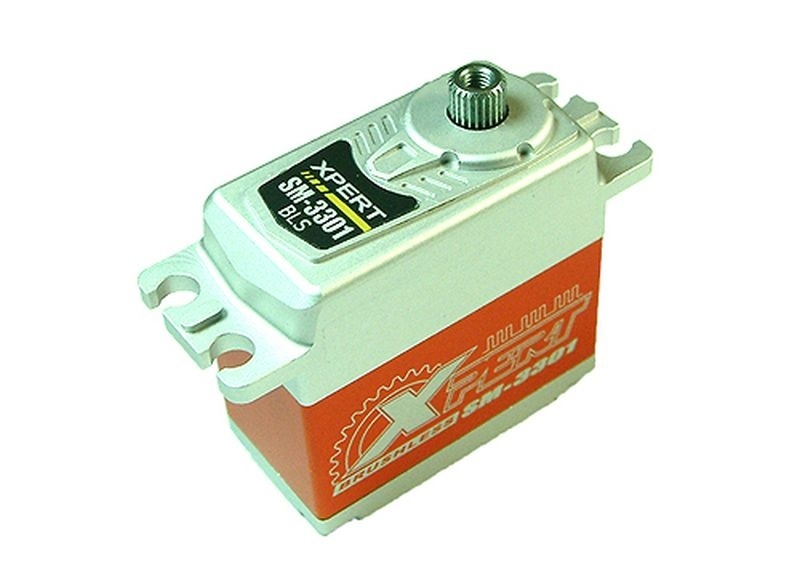

Xpert SM-3301-HV servo
Features
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- All Aluminum case for the best thermal dissipation and durability.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
Specifications
| Type | Standard |
| Product Name | SM-3301-HV |
| Part Name | SM-3301-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .064 sec/60° @7.4V: .052 sec/60° @8.4V: .046 sec/60° |
| Torque (oz/in) | @6.0V: 160.87 oz-in @7.4V: 198.48 oz-in @8.4V: 225.27 oz-in |
| Torque (kg/cm) | @6.0V: 11.59 kg-cm @7.4V: 14.30 kg-cm @8.4V: 16.23 kg-cm |

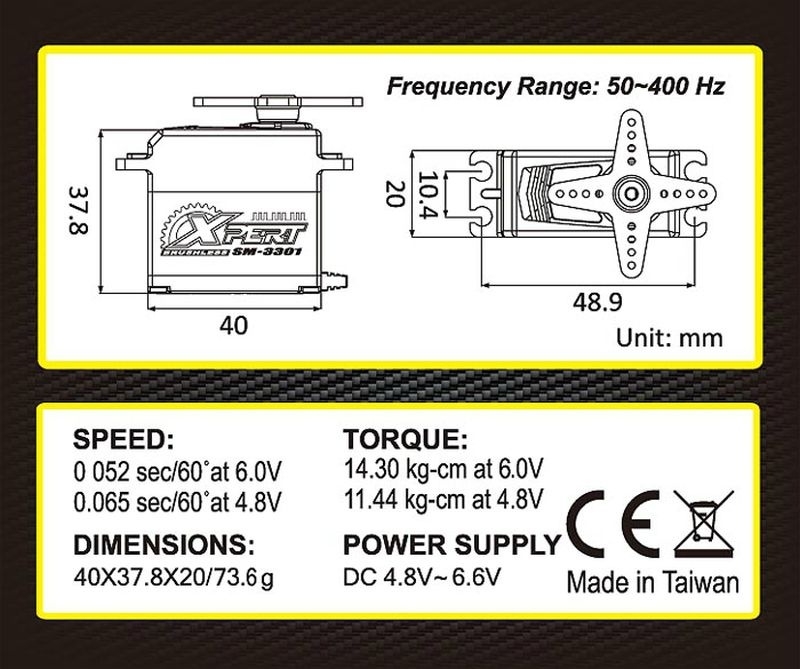

| Dimensions | 40x37.80x20 mm |
| Weight | 73.6 g |
| Frequency | 200/333 HZ |
| Range | 50~400 Hz |
| Center Position | 1520 μs |
| Applications | Car / Helicopter |
| Uper and Bottom Case | XC-01 |
| Hardware Parts | Xpare-01 |
| Gear Set | XGS71620 |
