RC KEY 10485-B Micro 2.4GHz FH5 4CH Antenna Nano Receiver Black (Sanwa compatible)

RC KEY 10485-B Micro 2.4GHz FH5 4CH Antenna Nano Receiver Black (Sanwa compatible)

Description

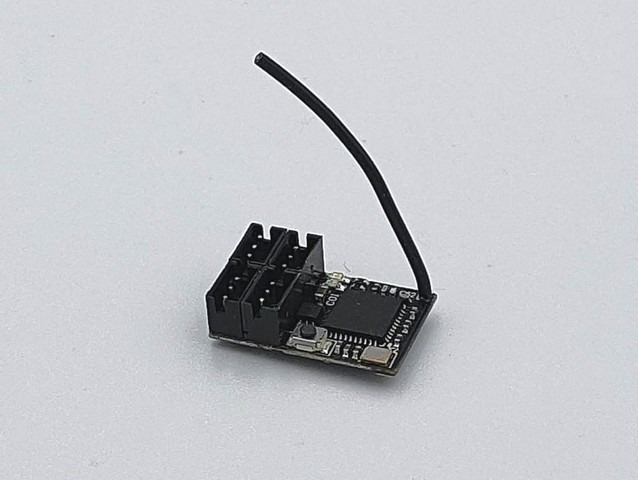

The RC Key 10485-B  2.4GHz 4-Channel FHSS5 SSL Telemetry Receiver uses a 30mm cable antenna with exceptional range and response time. With a lightweight design and a small footprint, this RC Key-10485-B receiver is great for Mini-z scale electric RC cars.

Features:
1. Sanwa 2.4GHz FHSS5U/FHSS5 Spread Spectrum System compatible
2. Compatible with SSL (SUPER VORTEX Series, etc...)
3. Ultra Response Mode (SUR)
4. Extreme Response Mode (SXR)
5. Dual ID system (able to bind with 2 transmitters)
6. Micro size (19mm x 12 mm)
7. Operating Voltage 3.5V - 8.4V
8. Weight: 2g

Indicator Function compatible:
Indicator function can be checked signal strength connected transmitter.
The indicator function can be used for finding problems as incorrect receiver placing and finding the best receiver position for transmitter.
Indicator function can be checked signal strength without any effect with response.

Compatible Transmitters:
Sanwa M17
Sanwa MT-5
Sanwa MT-R

Bind:
1.Turn on transmitter, enter [BIND] to be bind mode.
2.Connect BIND plug in BIND port then turn on receiver.
3.LED will change from slow flashing blue to fast flashing blue.
4.Turn off receiver, remove BIND plug, then turn on.
5.Finish BIND mode on transmitter.

NOTE:
RPM sensor (SNW107A41061A) and temperature sensor are not compatible
RPM and temperature telemetry are only capable with the Sanwa Super Vortex series
FH5U RF mode is not capable to use telemetry
SXR response mode is only compatible with transmitter M17.
